Changes Level Number (as null or single) to a new single value Entities attached to a LevelListEntity are ignored Entities considered can be, either all Entities but those attached to a LevelListEntity, or Entities attached to a specific Level Number (0 for not defined). More...
#include <IGESSelect_ChangeLevelNumber.hxx>

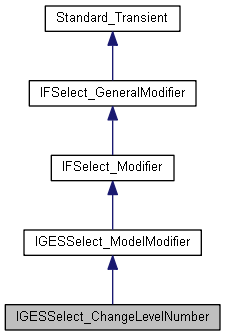

Inheritance diagram for IGESSelect_ChangeLevelNumber:
Public Member Functions | |
| IGESSelect_ChangeLevelNumber () | |
| Creates a ChangeLevelNumber, not yet defined (see SetOldNumber and SetNewNumber) More... | |
| Standard_Boolean | HasOldNumber () const |
| Returns True if OldNumber is defined : then, only entities attached to the value of OldNumber will be considered. Else, all entities but those attached to a Level List will be. More... | |
| Handle< IFSelect_IntParam > | OldNumber () const |
| Returns the parameter for OldNumber. If not defined (Null Handle), it will be interpreted as "all level numbers". More... | |
| void | SetOldNumber (const Handle< IFSelect_IntParam > ¶m) |
| Sets a parameter for OldNumber. More... | |
| Handle< IFSelect_IntParam > | NewNumber () const |
| Returns the parameter for NewNumber. If not defined (Null Handle), it will be interpreted as "new value 0". More... | |
| void | SetNewNumber (const Handle< IFSelect_IntParam > ¶m) |
| Sets a parameter for NewNumber. More... | |
| void | Performing (IFSelect_ContextModif &ctx, const Handle< IGESData_IGESModel > &target, Interface_CopyTool &TC) const override |
| Specific action : considers selected target entities : If OldNumber is not defined, all entities but those attached to a Level List If OldNumber is defined (value not negative), entities with a defined Level Number (can be zero) Attaches all these entities to value given by NewNumber, or zero if not defined. More... | |
| TCollection_AsciiString | Label () const override |
| Returns a text which is "Changes Level Number <old> to <new>" , or "Changes all Levels Numbers positive and zero to <new>". More... | |
 Public Member Functions inherited from IGESSelect_ModelModifier | |
| void | Perform (IFSelect_ContextModif &ctx, const Handle< Interface_InterfaceModel > &target, const Handle< Interface_Protocol > &protocol, Interface_CopyTool &TC) const override |
| The inherited Perform does the required cast (and refuses to go further if cast has failed) then calls the instantiated Performing. More... | |
| virtual void | PerformProtocol (IFSelect_ContextModif &ctx, const Handle< IGESData_IGESModel > &target, const Handle< IGESData_Protocol > &proto, Interface_CopyTool &TC) const |
| Specific Perform with Protocol. It is defined to let the Protocol unused and to call Performing without Protocol (most current case). It can be redefined if specific action requires Protocol. More... | |
| Public Member Functions inherited from IFSelect_GeneralModifier | |
| Standard_Boolean | MayChangeGraph () const |
| Returns True if this modifier may change the graph of dependences (aknowledged at creation time) More... | |
| void | SetDispatch (const Handle< IFSelect_Dispatch > &disp) |
| Attaches to a Dispatch. If <disp> is Null, Resets it (to apply the Modifier on every Dispatch) More... | |
| Handle< IFSelect_Dispatch > | Dispatch () const |
| Returns the Dispatch to be matched, Null if not set. More... | |
| Standard_Boolean | Applies (const Handle< IFSelect_Dispatch > &disp) const |
| Returns True if a Model obtained from the Dispatch <disp> is to be treated (apart from the Selection criterium) If Dispatch(me) is Null, returns True. Else, checks <disp> More... | |
| void | SetSelection (const Handle< IFSelect_Selection > &sel) |
| Sets a Selection : a Model is treated if it contains one or more Entities designated by the Selection. More... | |
| void | ResetSelection () |
| Resets the Selection : this criterium is not longer active. More... | |
| Standard_Boolean | HasSelection () const |
| Returns True if a Selection is set as an additionnal criterium. More... | |
| Handle< IFSelect_Selection > | Selection () const |
| Returns the Selection, or a Null Handle if not set. More... | |
| Public Member Functions inherited from Standard_Transient | |
| Standard_Transient () | |
| Empty constructor. More... | |
| Standard_Transient (const Standard_Transient &) | |
| Copy constructor – does nothing. More... | |
| Standard_Transient & | operator= (const Standard_Transient &) |
| Assignment operator, needed to avoid copying reference counter. More... | |
| virtual | ~Standard_Transient () |
| Destructor must be virtual. More... | |
| virtual void | Delete () const |
| Memory deallocator for transient classes. More... | |
| virtual const opencascade::handle< Standard_Type > & | DynamicType () const |
| Returns a type descriptor about this object. More... | |
| Standard_Boolean | IsInstance (const opencascade::handle< Standard_Type > &theType) const |
| Returns a true value if this is an instance of Type. More... | |
| Standard_Boolean | IsInstance (const Standard_CString theTypeName) const |
| Returns a true value if this is an instance of TypeName. More... | |
| Standard_Boolean | IsKind (const opencascade::handle< Standard_Type > &theType) const |
| Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism. More... | |
| Standard_Boolean | IsKind (const Standard_CString theTypeName) const |
| Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism. More... | |
| Standard_Transient * | This () const |
| Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero. More... | |
| Standard_Integer | GetRefCount () const |
| Get the reference counter of this object. More... | |
| void | IncrementRefCounter () const |
| Increments the reference counter of this object. More... | |
| Standard_Integer | DecrementRefCounter () const |
| Decrements the reference counter of this object; returns the decremented value. More... | |
Additional Inherited Members | |
| Public Types inherited from Standard_Transient | |
| typedef void | base_type |
| Returns a type descriptor about this object. More... | |
| Static Public Member Functions inherited from Standard_Transient | |
| static const char * | get_type_name () |
| Returns a type descriptor about this object. More... | |
| static const opencascade::handle< Standard_Type > & | get_type_descriptor () |
| Returns type descriptor of Standard_Transient class. More... | |
| Protected Member Functions inherited from IGESSelect_ModelModifier | |
| IGESSelect_ModelModifier (const Standard_Boolean maychangegraph) | |
| Calls inherited Initialize, transmits to it the information <maychangegraph> More... | |
| Protected Member Functions inherited from IFSelect_Modifier | |
| IFSelect_Modifier (const Standard_Boolean maychangegraph) | |
| Calls inherited Initialize, transmits to it the information <maychangegraph> More... | |
| Protected Member Functions inherited from IFSelect_GeneralModifier | |
| IFSelect_GeneralModifier (const Standard_Boolean maychangegraph) | |
| Sets the Modifier criteria to default Values (i.e. "always applies") <maychangegraph> must be provided at creation time, to : More... | |
Detailed Description
Changes Level Number (as null or single) to a new single value Entities attached to a LevelListEntity are ignored Entities considered can be, either all Entities but those attached to a LevelListEntity, or Entities attached to a specific Level Number (0 for not defined).
Remark : this concerns the Directory Part only. The Level List Entities themselves (their content) are not affected.
Constructor & Destructor Documentation
◆ IGESSelect_ChangeLevelNumber()
| IGESSelect_ChangeLevelNumber::IGESSelect_ChangeLevelNumber | ( | ) |
Creates a ChangeLevelNumber, not yet defined (see SetOldNumber and SetNewNumber)
Member Function Documentation
◆ HasOldNumber()
| Standard_Boolean IGESSelect_ChangeLevelNumber::HasOldNumber | ( | ) | const |
Returns True if OldNumber is defined : then, only entities attached to the value of OldNumber will be considered. Else, all entities but those attached to a Level List will be.
◆ Label()
|
overridevirtual |
Returns a text which is "Changes Level Number <old> to <new>" , or "Changes all Levels Numbers positive and zero to <new>".
Implements IFSelect_GeneralModifier.
◆ NewNumber()
| Handle< IFSelect_IntParam > IGESSelect_ChangeLevelNumber::NewNumber | ( | ) | const |
Returns the parameter for NewNumber. If not defined (Null Handle), it will be interpreted as "new value 0".
◆ OldNumber()
| Handle< IFSelect_IntParam > IGESSelect_ChangeLevelNumber::OldNumber | ( | ) | const |
Returns the parameter for OldNumber. If not defined (Null Handle), it will be interpreted as "all level numbers".
◆ Performing()
|
overridevirtual |
Specific action : considers selected target entities : If OldNumber is not defined, all entities but those attached to a Level List If OldNumber is defined (value not negative), entities with a defined Level Number (can be zero) Attaches all these entities to value given by NewNumber, or zero if not defined.
Implements IGESSelect_ModelModifier.
◆ SetNewNumber()
| void IGESSelect_ChangeLevelNumber::SetNewNumber | ( | const Handle< IFSelect_IntParam > & | param | ) |
Sets a parameter for NewNumber.
◆ SetOldNumber()
| void IGESSelect_ChangeLevelNumber::SetOldNumber | ( | const Handle< IFSelect_IntParam > & | param | ) |
Sets a parameter for OldNumber.
The documentation for this class was generated from the following file:
