The abstract class BooleanOperation is the root class of Boolean Operations (see Overview). Boolean Operations algorithm is divided onto two parts:
More...

#include <BRepAlgoAPI_BooleanOperation.hxx>

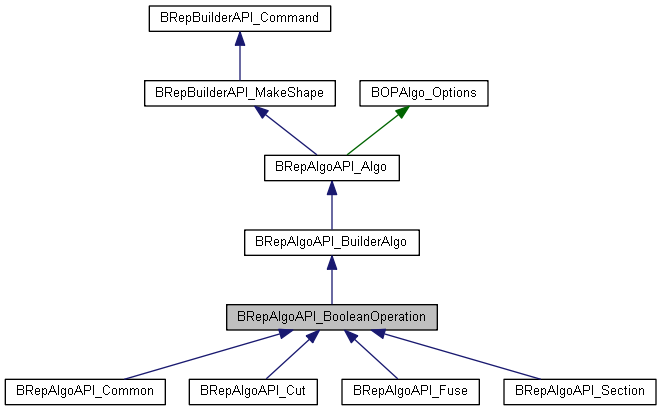

Inheritance diagram for BRepAlgoAPI_BooleanOperation:

[legend]

Public Member Functions
const TopoDS_Shape &	Shape1 () const
	Returns the first argument involved in this Boolean operation. Obsolete. More...

const TopoDS_Shape &	Shape2 () const
	Returns the second argument involved in this Boolean operation. Obsolete. More...

void	SetTools (const TopTools_ListOfShape &theLS)
	Sets the tools. More...

const TopTools_ListOfShape &	Tools () const
	Gets the tools. More...

void	SetOperation (const BOPAlgo_Operation anOp)
	Sets the type of Boolean operation. More...

BOPAlgo_Operation	Operation () const
	Returns the type of Boolean Operation. More...

virtual	~BRepAlgoAPI_BooleanOperation ()

virtual void	Build () override
	Performs the algorithm Filling interference Data Structure (if it is necessary) Building the result of the operation. More...

Standard_Boolean	BuilderCanWork () const
	Returns True if there was no errors occured obsolete. More...

Standard_Boolean	FuseEdges () const
	Returns the flag of edge refining. More...

void	RefineEdges ()
	Fuse C1 edges. More...

const TopTools_ListOfShape &	SectionEdges ()
	Returns a list of section edges. The edges represent the result of intersection between arguments of Boolean Operation. They are computed during operation execution. More...

virtual const TopTools_ListOfShape &	Modified (const TopoDS_Shape &aS) override
	Returns the list of shapes modified from the shape <S>. More...

virtual Standard_Boolean	IsDeleted (const TopoDS_Shape &aS) override
	Returns true if the shape S has been deleted. The result shape of the operation does not contain the shape S. More...

virtual const TopTools_ListOfShape &	Generated (const TopoDS_Shape &S) override
	Returns the list of shapes generated from the shape <S>. For use in BRepNaming. More...

virtual Standard_Boolean	HasModified () const override
	Returns true if there is at least one modified shape. For use in BRepNaming. More...

virtual Standard_Boolean	HasGenerated () const override
	Returns true if there is at least one generated shape. For use in BRepNaming. More...

virtual Standard_Boolean	HasDeleted () const override
	Returns true if there is at least one deleted shape. For use in BRepNaming. More...

Public Member Functions inherited from BRepAlgoAPI_BuilderAlgo
	BRepAlgoAPI_BuilderAlgo ()
	Empty constructor. More...

virtual	~BRepAlgoAPI_BuilderAlgo ()

	BRepAlgoAPI_BuilderAlgo (const BOPAlgo_PaveFiller &thePF)
	Empty constructor. More...

void	SetNonDestructive (const Standard_Boolean theFlag)
	Sets the flag that defines the mode of treatment. In non-destructive mode the argument shapes are not modified. Instead a copy of a sub-shape is created in the result if it is needed to be updated. More...

Standard_Boolean	NonDestructive () const
	Returns the flag that defines the mode of treatment. In non-destructive mode the argument shapes are not modified. Instead a copy of a sub-shape is created in the result if it is needed to be updated. More...

void	SetGlue (const BOPAlgo_GlueEnum theGlue)
	Sets the glue option for the algorithm. More...

BOPAlgo_GlueEnum	Glue () const
	Returns the glue option of the algorithm. More...

void	SetCheckInverted (const Standard_Boolean theCheck)
	Enables/Disables the check of the input solids for inverted status. More...

Standard_Boolean	CheckInverted () const
	Returns the flag defining whether the check for input solids on inverted status should be performed or not. More...

void	SetArguments (const TopTools_ListOfShape &theLS)
	Sets the arguments. More...

const TopTools_ListOfShape &	Arguments () const
	Gets the arguments. More...

const BOPAlgo_PPaveFiller &	DSFiller () const
	Returns the Intersection tool. More...

const BOPAlgo_PBuilder &	Builder () const
	Returns the Building tool. More...

Public Member Functions inherited from BRepAlgoAPI_Algo
virtual const TopoDS_Shape &	Shape () override
	Returns a shape built by the shape construction algorithm. Raises exception StdFail_NotDone if the shape was not built. More...

Public Member Functions inherited from BRepBuilderAPI_MakeShape
	operator TopoDS_Shape ()

Public Member Functions inherited from BRepBuilderAPI_Command
virtual	~BRepBuilderAPI_Command ()

virtual Standard_Boolean	IsDone () const

void	Check () const
	Raises NotDone if done is false. More...

Protected Member Functions
	BRepAlgoAPI_BooleanOperation ()
	Empty constructor. More...

	BRepAlgoAPI_BooleanOperation (const BOPAlgo_PaveFiller &PF)
	Empty constructor <PF> - PaveFiller object that is carried out. More...

	BRepAlgoAPI_BooleanOperation (const TopoDS_Shape &S1, const TopoDS_Shape &S2, const BOPAlgo_Operation anOperation)
	Constructor with two arguments <S1>, <S2> -arguments <anOperation> - the type of the operation Obsolete. More...

	BRepAlgoAPI_BooleanOperation (const TopoDS_Shape &S1, const TopoDS_Shape &S2, const BOPAlgo_PaveFiller &PF, const BOPAlgo_Operation anOperation)
	Constructor with two arguments <S1>, <S2> -arguments <anOperation> - the type of the operation <PF> - PaveFiller object that is carried out Obsolete. More...

virtual void	Clear () override
	Clears all warnings and errors, and any data cached by the algorithm. User defined options are not cleared. More...

virtual void	SetAttributes ()

const TopTools_ListOfShape &	RefinedList (const TopTools_ListOfShape &theL)
	Returns the list of shapes generated from the shape <S>. For use in BRepNaming. More...

Protected Member Functions inherited from BRepAlgoAPI_Algo
	BRepAlgoAPI_Algo ()
	Empty constructor. More...

virtual	~BRepAlgoAPI_Algo ()
	Destructor. More...

	BRepAlgoAPI_Algo (const Handle< NCollection_BaseAllocator > &theAllocator)
	Empty constructor. More...

Protected Member Functions inherited from BRepBuilderAPI_MakeShape
	BRepBuilderAPI_MakeShape ()

Protected Member Functions inherited from BRepBuilderAPI_Command
	BRepBuilderAPI_Command ()
	Set done to False. More...

void	Done ()
	Set done to true. More...

void	NotDone ()
	Set done to false. More...

Protected Member Functions inherited from BOPAlgo_Options
void	UserBreak () const
	Breaks the execution if the break signal is indicated by myProgressIndicator. More...

	BOPAlgo_Options ()
	Empty constructor. More...

	BOPAlgo_Options (const Handle< NCollection_BaseAllocator > &theAllocator)
	Constructor with allocator. More...

virtual	~BOPAlgo_Options ()
	Destructor. More...

const Handle< NCollection_BaseAllocator > &	Allocator () const
	Returns allocator. More...

void	AddError (const Handle< Message_Alert > &theAlert)
	Adds the alert as error (fail) More...

void	AddWarning (const Handle< Message_Alert > &theAlert)
	Adds the alert as warning. More...

Standard_Boolean	HasErrors () const
	Returns true if algorithm has failed. More...

Standard_Boolean	HasError (const Handle< Standard_Type > &theType) const
	Returns true if algorithm has generated error of specified type. More...

Standard_Boolean	HasWarnings () const
	Returns true if algorithm has generated some warning alerts. More...

Standard_Boolean	HasWarning (const Handle< Standard_Type > &theType) const
	Returns true if algorithm has generated warning of specified type. More...

const Handle< Message_Report > &	GetReport () const
	Returns report collecting all errors and warnings. More...

void	DumpErrors (Standard_OStream &theOS) const
	Dumps the error status into the given stream. More...

void	DumpWarnings (Standard_OStream &theOS) const
	Dumps the warning statuses into the given stream. More...

void	ClearWarnings ()
	Clears the warnings of the algorithm. More...

void	SetFuzzyValue (const Standard_Real theFuzz)
	Sets the additional tolerance. More...

Standard_Real	FuzzyValue () const
	Returns the additional tolerance. More...

void	SetProgressIndicator (const Handle< Message_ProgressIndicator > &theObj)
	Set the Progress Indicator object. More...

void	SetRunParallel (const Standard_Boolean theFlag)
	Set the flag of parallel processing if <theFlag> is true the parallel processing is switched on if <theFlag> is false the parallel processing is switched off. More...

Standard_Boolean	RunParallel () const
	Returns the flag of parallel processing. More...

void	SetUseOBB (const Standard_Boolean theUseOBB)
	Enables/Disables the usage of OBB. More...

Standard_Boolean	UseOBB () const
	Returns the flag defining usage of OBB. More...

Protected Attributes
TopTools_ListOfShape	myTools

BOPAlgo_Operation	myOperation

Standard_Boolean	myBuilderCanWork

Protected Attributes inherited from BRepAlgoAPI_BuilderAlgo
Standard_Integer	myEntryType

BOPAlgo_PPaveFiller	myDSFiller

BOPAlgo_PBuilder	myBuilder

Standard_Boolean	myNonDestructive

TopTools_ListOfShape	myArguments

BOPAlgo_GlueEnum	myGlue

Standard_Boolean	myCheckInverted

Protected Attributes inherited from BRepBuilderAPI_MakeShape
TopoDS_Shape	myShape

TopTools_ListOfShape	myGenerated

Protected Attributes inherited from BOPAlgo_Options
Handle< NCollection_BaseAllocator >	myAllocator
	Enables/Disables the usage of OBB. More...

Handle< Message_Report >	myReport
	Enables/Disables the usage of OBB. More...

Standard_Boolean	myRunParallel
	Enables/Disables the usage of OBB. More...

Standard_Real	myFuzzyValue
	Enables/Disables the usage of OBB. More...

Handle< Message_ProgressIndicator >	myProgressIndicator
	Enables/Disables the usage of OBB. More...

Standard_Boolean	myUseOBB
	Enables/Disables the usage of OBB. More...

Additional Inherited Members
Static Protected Member Functions inherited from BOPAlgo_Options
static Standard_Boolean	GetParallelMode ()
	Gets the global parallel mode. More...

static void	SetParallelMode (const Standard_Boolean theNewMode)
	Sets the global parallel mode. More...

Detailed Description

The abstract class BooleanOperation is the root class of Boolean Operations (see Overview). Boolean Operations algorithm is divided onto two parts:

The first one is computing interference between arguments;
The second one is building the result of operation;
The class BooleanOperation provides API level of both parts.

Additionally to the errors of the parent class the algorithm returns the following Error statuses:

0 - in case of success;
BOPAlgo_AlertBOPNotSet - in case the type of Boolean Operation is not set.

Constructor & Destructor Documentation

◆ ~BRepAlgoAPI_BooleanOperation()

virtual BRepAlgoAPI_BooleanOperation::~BRepAlgoAPI_BooleanOperation ( )

virtual

◆ BRepAlgoAPI_BooleanOperation() [1/4]

BRepAlgoAPI_BooleanOperation::BRepAlgoAPI_BooleanOperation ( )

protected

Empty constructor.

◆ BRepAlgoAPI_BooleanOperation() [2/4]

BRepAlgoAPI_BooleanOperation::BRepAlgoAPI_BooleanOperation ( const BOPAlgo_PaveFiller & PF )

protected

Empty constructor <PF> - PaveFiller object that is carried out.

◆ BRepAlgoAPI_BooleanOperation() [3/4]

BRepAlgoAPI_BooleanOperation::BRepAlgoAPI_BooleanOperation	(	const TopoDS_Shape &	S1,
		const TopoDS_Shape &	S2,
		const BOPAlgo_Operation	anOperation
	)

protected

Constructor with two arguments <S1>, <S2> -arguments <anOperation> - the type of the operation Obsolete.

◆ BRepAlgoAPI_BooleanOperation() [4/4]

BRepAlgoAPI_BooleanOperation::BRepAlgoAPI_BooleanOperation	(	const TopoDS_Shape &	S1,
		const TopoDS_Shape &	S2,
		const BOPAlgo_PaveFiller &	PF,
		const BOPAlgo_Operation	anOperation
	)

protected

Constructor with two arguments <S1>, <S2> -arguments <anOperation> - the type of the operation <PF> - PaveFiller object that is carried out Obsolete.

Member Function Documentation

◆ Build()

virtual void BRepAlgoAPI_BooleanOperation::Build ( )

overridevirtual

Performs the algorithm Filling interference Data Structure (if it is necessary) Building the result of the operation.

Reimplemented from BRepAlgoAPI_BuilderAlgo.

Reimplemented in BRepAlgoAPI_Section.

◆ BuilderCanWork()

Standard_Boolean BRepAlgoAPI_BooleanOperation::BuilderCanWork ( ) const

Returns True if there was no errors occured obsolete.

◆ Clear()

virtual void BRepAlgoAPI_BooleanOperation::Clear ( )

overrideprotectedvirtual

Clears all warnings and errors, and any data cached by the algorithm. User defined options are not cleared.

Reimplemented from BRepAlgoAPI_BuilderAlgo.

◆ FuseEdges()

Standard_Boolean BRepAlgoAPI_BooleanOperation::FuseEdges ( ) const

Returns the flag of edge refining.

◆ Generated()

virtual const TopTools_ListOfShape& BRepAlgoAPI_BooleanOperation::Generated ( const TopoDS_Shape & S )

overridevirtual

Returns the list of shapes generated from the shape <S>. For use in BRepNaming.

Reimplemented from BRepAlgoAPI_BuilderAlgo.

◆ HasDeleted()

virtual Standard_Boolean BRepAlgoAPI_BooleanOperation::HasDeleted ( ) const

overridevirtual

Returns true if there is at least one deleted shape. For use in BRepNaming.

Reimplemented from BRepAlgoAPI_BuilderAlgo.

◆ HasGenerated()

virtual Standard_Boolean BRepAlgoAPI_BooleanOperation::HasGenerated ( ) const

overridevirtual

Returns true if there is at least one generated shape. For use in BRepNaming.

Reimplemented from BRepAlgoAPI_BuilderAlgo.

◆ HasModified()

virtual Standard_Boolean BRepAlgoAPI_BooleanOperation::HasModified ( ) const

overridevirtual

Returns true if there is at least one modified shape. For use in BRepNaming.

Reimplemented from BRepAlgoAPI_BuilderAlgo.

◆ IsDeleted()

virtual Standard_Boolean BRepAlgoAPI_BooleanOperation::IsDeleted ( const TopoDS_Shape & aS )

overridevirtual

Returns true if the shape S has been deleted. The result shape of the operation does not contain the shape S.

Reimplemented from BRepAlgoAPI_BuilderAlgo.

◆ Modified()

virtual const TopTools_ListOfShape& BRepAlgoAPI_BooleanOperation::Modified ( const TopoDS_Shape & aS )

overridevirtual

Returns the list of shapes modified from the shape <S>.

Reimplemented from BRepAlgoAPI_BuilderAlgo.

◆ Operation()

BOPAlgo_Operation BRepAlgoAPI_BooleanOperation::Operation ( ) const

Returns the type of Boolean Operation.

◆ RefinedList()

const TopTools_ListOfShape& BRepAlgoAPI_BooleanOperation::RefinedList ( const TopTools_ListOfShape & theL )

protected

Returns the list of shapes generated from the shape <S>. For use in BRepNaming.

◆ RefineEdges()

void BRepAlgoAPI_BooleanOperation::RefineEdges ( )

Fuse C1 edges.

◆ SectionEdges()

const TopTools_ListOfShape& BRepAlgoAPI_BooleanOperation::SectionEdges ( )

Returns a list of section edges. The edges represent the result of intersection between arguments of Boolean Operation. They are computed during operation execution.

◆ SetAttributes()

virtual void BRepAlgoAPI_BooleanOperation::SetAttributes ( )

protectedvirtual

Reimplemented in BRepAlgoAPI_Section.

◆ SetOperation()

void BRepAlgoAPI_BooleanOperation::SetOperation ( const BOPAlgo_Operation anOp )

Sets the type of Boolean operation.

◆ SetTools()

void BRepAlgoAPI_BooleanOperation::SetTools ( const TopTools_ListOfShape & theLS )

Sets the tools.

◆ Shape1()

const TopoDS_Shape& BRepAlgoAPI_BooleanOperation::Shape1 ( ) const

Returns the first argument involved in this Boolean operation. Obsolete.

◆ Shape2()

const TopoDS_Shape& BRepAlgoAPI_BooleanOperation::Shape2 ( ) const

Returns the second argument involved in this Boolean operation. Obsolete.

◆ Tools()

const TopTools_ListOfShape& BRepAlgoAPI_BooleanOperation::Tools ( ) const

Gets the tools.

Field Documentation

◆ myBuilderCanWork

Standard_Boolean BRepAlgoAPI_BooleanOperation::myBuilderCanWork

protected

◆ myOperation

BOPAlgo_Operation BRepAlgoAPI_BooleanOperation::myOperation

protected

◆ myTools

TopTools_ListOfShape BRepAlgoAPI_BooleanOperation::myTools

protected

The documentation for this class was generated from the following file:

BRepAlgoAPI_BooleanOperation.hxx

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~BRepAlgoAPI_BooleanOperation()

◆ BRepAlgoAPI_BooleanOperation() [1/4]

◆ BRepAlgoAPI_BooleanOperation() [2/4]

◆ BRepAlgoAPI_BooleanOperation() [3/4]

◆ BRepAlgoAPI_BooleanOperation() [4/4]

Member Function Documentation

◆ Build()

◆ BuilderCanWork()

◆ Clear()

◆ FuseEdges()

◆ Generated()

◆ HasDeleted()

◆ HasGenerated()

◆ HasModified()

◆ IsDeleted()

◆ Modified()

◆ Operation()

◆ RefinedList()

◆ RefineEdges()

◆ SectionEdges()

◆ SetAttributes()

◆ SetOperation()

◆ SetTools()

◆ Shape1()

◆ Shape2()

◆ Tools()

Field Documentation

◆ myBuilderCanWork

◆ myOperation

◆ myTools
