Extends node insertion Delaunay meshing algo in order to control deflection of generated trianges. Splits triangles failing the check. More...
#include <BRepMesh_DelaunayDeflectionControlMeshAlgo.hxx>

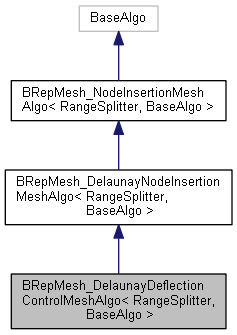

Inheritance diagram for BRepMesh_DelaunayDeflectionControlMeshAlgo< RangeSplitter, BaseAlgo >:
Public Member Functions | |
| BRepMesh_DelaunayDeflectionControlMeshAlgo () | |
| Constructor. More... | |
| virtual | ~BRepMesh_DelaunayDeflectionControlMeshAlgo () |
| Destructor. More... | |
 Public Member Functions inherited from BRepMesh_DelaunayNodeInsertionMeshAlgo< RangeSplitter, BaseAlgo > | |
| BRepMesh_DelaunayNodeInsertionMeshAlgo () | |
| Constructor. More... | |
| virtual | ~BRepMesh_DelaunayNodeInsertionMeshAlgo () |
| Destructor. More... | |
| Standard_Boolean | IsPreProcessSurfaceNodes () const |
| Returns PreProcessSurfaceNodes flag. More... | |
| void | SetPreProcessSurfaceNodes (const Standard_Boolean isPreProcessSurfaceNodes) |
| Sets PreProcessSurfaceNodes flag. If TRUE, registers surface nodes before generation of base mesh. If FALSE, inserts surface nodes after generation of base mesh. More... | |
| Public Member Functions inherited from BRepMesh_NodeInsertionMeshAlgo< RangeSplitter, BaseAlgo > | |
| BRepMesh_NodeInsertionMeshAlgo () | |
| Constructor. More... | |
| virtual | ~BRepMesh_NodeInsertionMeshAlgo () |
| Destructor. More... | |
| virtual void | Perform (const IMeshData::IFaceHandle &theDFace, const IMeshTools_Parameters &theParameters) override |
| Performs processing of the given face. More... | |
Protected Member Functions | |
| virtual void | postProcessMesh (BRepMesh_Delaun &theMesher) override |
| Perfroms processing of generated mesh. Generates surface nodes and inserts them into structure. More... | |
| virtual void | optimizeMesh (BRepMesh_Delaun &theMesher) |
| Checks deviation of a mesh from geometrical surface. Inserts additional nodes in case of huge deviation. More... | |
| Protected Member Functions inherited from BRepMesh_DelaunayNodeInsertionMeshAlgo< RangeSplitter, BaseAlgo > | |
| virtual Standard_Boolean | initDataStructure () override |
| Performs initialization of data structure using existing model data. More... | |
| virtual std::pair< Standard_Integer, Standard_Integer > | getCellsCount (const Standard_Integer theVerticesNb) override |
| Returns size of cell to be used by acceleration circles grid structure. More... | |
| Standard_Boolean | insertNodes (const Handle< IMeshData::ListOfPnt2d > &theNodes, BRepMesh_Delaun &theMesher) |
| Inserts nodes into mesh. More... | |
| Protected Member Functions inherited from BRepMesh_NodeInsertionMeshAlgo< RangeSplitter, BaseAlgo > | |
| virtual Standard_Integer | addNodeToStructure (const gp_Pnt2d &thePoint, const Standard_Integer theLocation3d, const BRepMesh_DegreeOfFreedom theMovability, const Standard_Boolean isForceAdd) override |
| Adds the given 2d point to mesh data structure. Returns index of node in the structure. More... | |
| virtual gp_Pnt2d | getNodePoint2d (const BRepMesh_Vertex &theVertex) const override |
| Returns 2d point associated to the given vertex. More... | |
| const RangeSplitter & | getRangeSplitter () const |
| Returns range splitter. More... | |
| const Handle< BRepMesh_Classifier > & | getClassifier () const |
| Returns classifier. More... | |
Additional Inherited Members | |
| Protected Types inherited from BRepMesh_NodeInsertionMeshAlgo< RangeSplitter, BaseAlgo > | |
| typedef NCollection_Shared< NCollection_Sequence< const gp_Pnt2d * > > | SequenceOfPnt2d |
Detailed Description
template<class RangeSplitter, class BaseAlgo>
class BRepMesh_DelaunayDeflectionControlMeshAlgo< RangeSplitter, BaseAlgo >
Extends node insertion Delaunay meshing algo in order to control deflection of generated trianges. Splits triangles failing the check.
Constructor & Destructor Documentation
◆ BRepMesh_DelaunayDeflectionControlMeshAlgo()
template<class RangeSplitter , class BaseAlgo >
|
inline |
Constructor.
◆ ~BRepMesh_DelaunayDeflectionControlMeshAlgo()
template<class RangeSplitter , class BaseAlgo >
|
inlinevirtual |
Destructor.
Member Function Documentation
◆ optimizeMesh()
template<class RangeSplitter , class BaseAlgo >
|
inlineprotectedvirtual |
Checks deviation of a mesh from geometrical surface. Inserts additional nodes in case of huge deviation.
◆ postProcessMesh()
template<class RangeSplitter , class BaseAlgo >
|
inlineoverrideprotectedvirtual |
Perfroms processing of generated mesh. Generates surface nodes and inserts them into structure.
Reimplemented from BRepMesh_DelaunayNodeInsertionMeshAlgo< RangeSplitter, BaseAlgo >.
The documentation for this class was generated from the following file:
