Representation of member for STEP SELECT type SymmetricTensor43d. More...
#include <StepFEA_SymmetricTensor43dMember.hxx>

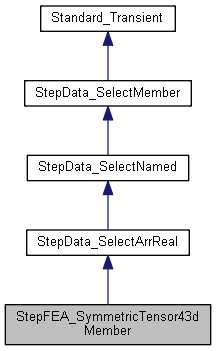

Inheritance diagram for StepFEA_SymmetricTensor43dMember:
Public Member Functions | |
| StepFEA_SymmetricTensor43dMember () | |
| Empty constructor. More... | |
| virtual Standard_Boolean | HasName () const override |
| Returns True if has name. More... | |
| virtual Standard_CString | Name () const override |
| Returns set name. More... | |
| virtual Standard_Boolean | SetName (const Standard_CString name) override |
| Set name. More... | |
| virtual Standard_Boolean | Matches (const Standard_CString name) const override |
| Tells if the name of a SelectMember matches a given one;. More... | |
 Public Member Functions inherited from StepData_SelectArrReal | |
| StepData_SelectArrReal () | |
| virtual Standard_Integer | Kind () const override |
| Handle< TColStd_HArray1OfReal > | ArrReal () const |
| void | SetArrReal (const Handle< TColStd_HArray1OfReal > &arr) |
| Public Member Functions inherited from StepData_SelectNamed | |
| StepData_SelectNamed () | |
| const StepData_Field & | Field () const |
| StepData_Field & | CField () |
| virtual void | SetKind (const Standard_Integer kind) override |
| virtual Standard_Integer | Int () const override |
| This internal method gives access to a value implemented by an Integer (to read it) More... | |
| virtual void | SetInt (const Standard_Integer val) override |
| This internal method gives access to a value implemented by an Integer (to set it) More... | |
| virtual Standard_Real | Real () const override |
| virtual void | SetReal (const Standard_Real val) override |
| virtual Standard_CString | String () const override |
| virtual void | SetString (const Standard_CString val) override |
| Public Member Functions inherited from StepData_SelectMember | |
| StepData_SelectMember () | |
| Interface_ParamType | ParamType () const |
| Returns the Kind of the SelectMember, under the form of an enum ParamType. More... | |
| Standard_Integer | Integer () const |
| Gets the value as an Integer. More... | |
| void | SetInteger (const Standard_Integer val) |
| Standard_Boolean | Boolean () const |
| void | SetBoolean (const Standard_Boolean val) |
| StepData_Logical | Logical () const |
| void | SetLogical (const StepData_Logical val) |
| Standard_Integer | Enum () const |
| virtual Standard_CString | EnumText () const |
| void | SetEnum (const Standard_Integer val, const Standard_CString text="") |
| virtual void | SetEnumText (const Standard_Integer val, const Standard_CString text) |
| Public Member Functions inherited from Standard_Transient | |
| Standard_Transient () | |
| Empty constructor. More... | |
| Standard_Transient (const Standard_Transient &) | |
| Copy constructor – does nothing. More... | |
| Standard_Transient & | operator= (const Standard_Transient &) |
| Assignment operator, needed to avoid copying reference counter. More... | |
| virtual | ~Standard_Transient () |
| Destructor must be virtual. More... | |
| virtual void | Delete () const |
| Memory deallocator for transient classes. More... | |
| virtual const opencascade::handle< Standard_Type > & | DynamicType () const |
| Returns a type descriptor about this object. More... | |
| Standard_Boolean | IsInstance (const opencascade::handle< Standard_Type > &theType) const |
| Returns a true value if this is an instance of Type. More... | |
| Standard_Boolean | IsInstance (const Standard_CString theTypeName) const |
| Returns a true value if this is an instance of TypeName. More... | |
| Standard_Boolean | IsKind (const opencascade::handle< Standard_Type > &theType) const |
| Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism. More... | |
| Standard_Boolean | IsKind (const Standard_CString theTypeName) const |
| Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism. More... | |
| Standard_Transient * | This () const |
| Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero. More... | |
| Standard_Integer | GetRefCount () const |
| Get the reference counter of this object. More... | |
| void | IncrementRefCounter () const |
| Increments the reference counter of this object. More... | |
| Standard_Integer | DecrementRefCounter () const |
| Decrements the reference counter of this object; returns the decremented value. More... | |
Additional Inherited Members | |
| Public Types inherited from Standard_Transient | |
| typedef void | base_type |
| Returns a type descriptor about this object. More... | |
| Static Public Member Functions inherited from Standard_Transient | |
| static const char * | get_type_name () |
| Returns a type descriptor about this object. More... | |
| static const opencascade::handle< Standard_Type > & | get_type_descriptor () |
| Returns type descriptor of Standard_Transient class. More... | |
Detailed Description
Representation of member for STEP SELECT type SymmetricTensor43d.
Constructor & Destructor Documentation
◆ StepFEA_SymmetricTensor43dMember()
| StepFEA_SymmetricTensor43dMember::StepFEA_SymmetricTensor43dMember | ( | ) |
Empty constructor.
Member Function Documentation
◆ HasName()
|
overridevirtual |
Returns True if has name.
Reimplemented from StepData_SelectNamed.
◆ Matches()
|
overridevirtual |
Tells if the name of a SelectMember matches a given one;.
Reimplemented from StepData_SelectMember.
◆ Name()
|
overridevirtual |
Returns set name.
Reimplemented from StepData_SelectNamed.
◆ SetName()
|
overridevirtual |
Set name.
Reimplemented from StepData_SelectNamed.
The documentation for this class was generated from the following file:
